100W Solar Panel N-Type, 12V 100 Watt Solar Panel 16BB 25% High-Efficiency, N-Type Solar Panels for RV Marine Boat Trailer Camper Rooftop Farm and Other Off-Grid System
100W Solar Panel N-Type, 12V 100 Watt Solar Panel 16BB 25% High-Efficiency, N-Type Solar Panels for RV Marine Boat Trailer Camper Rooftop Farm and Other Off-Grid System
Couldn't load pickup availability
- Unmatched Cell Efficiency - Renogy solar panel 100w features grade A+ cells, delivering an impressive conversion efficiency of 25%. This solar panels provide 20W more power output compared to conventional PERC panels of the same design.

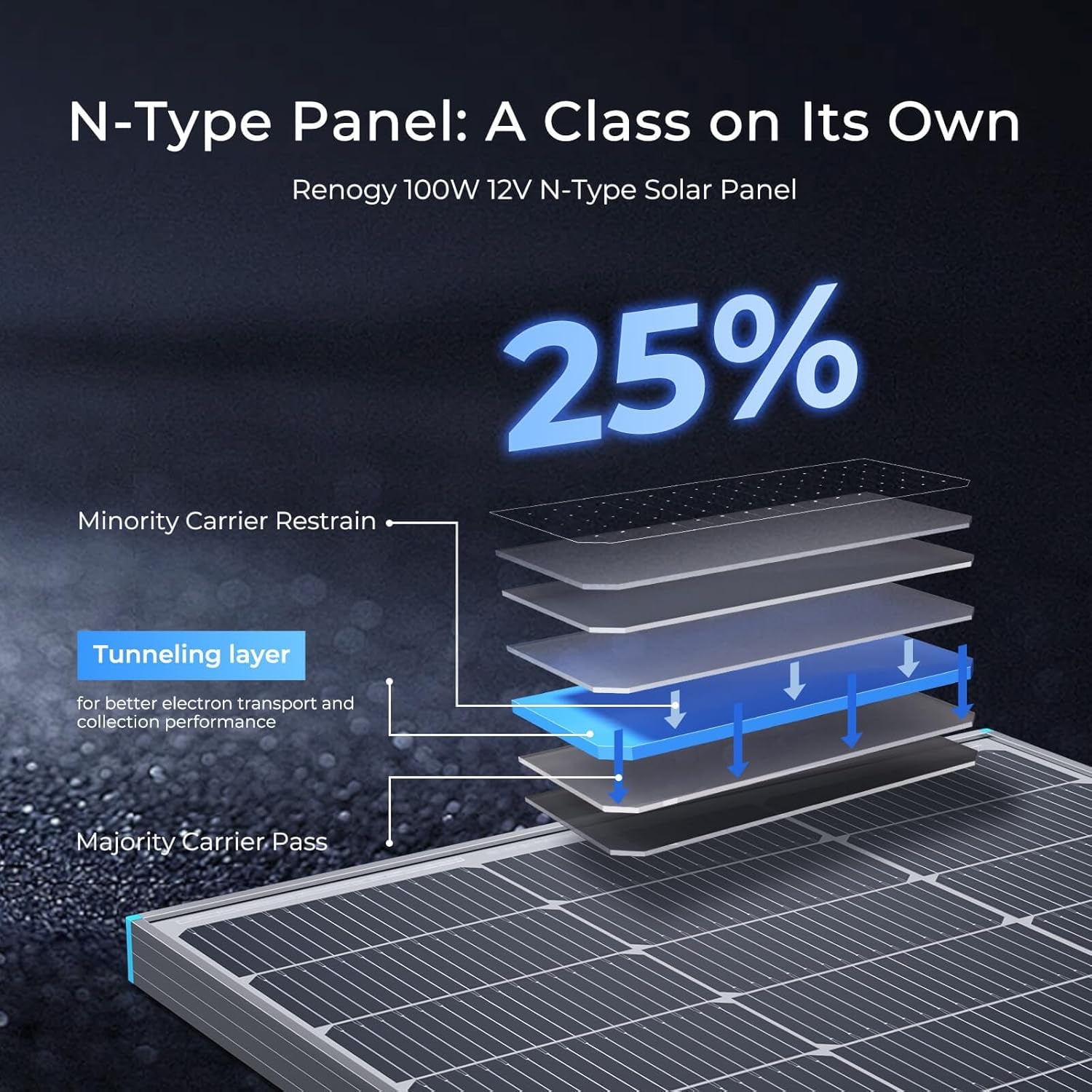

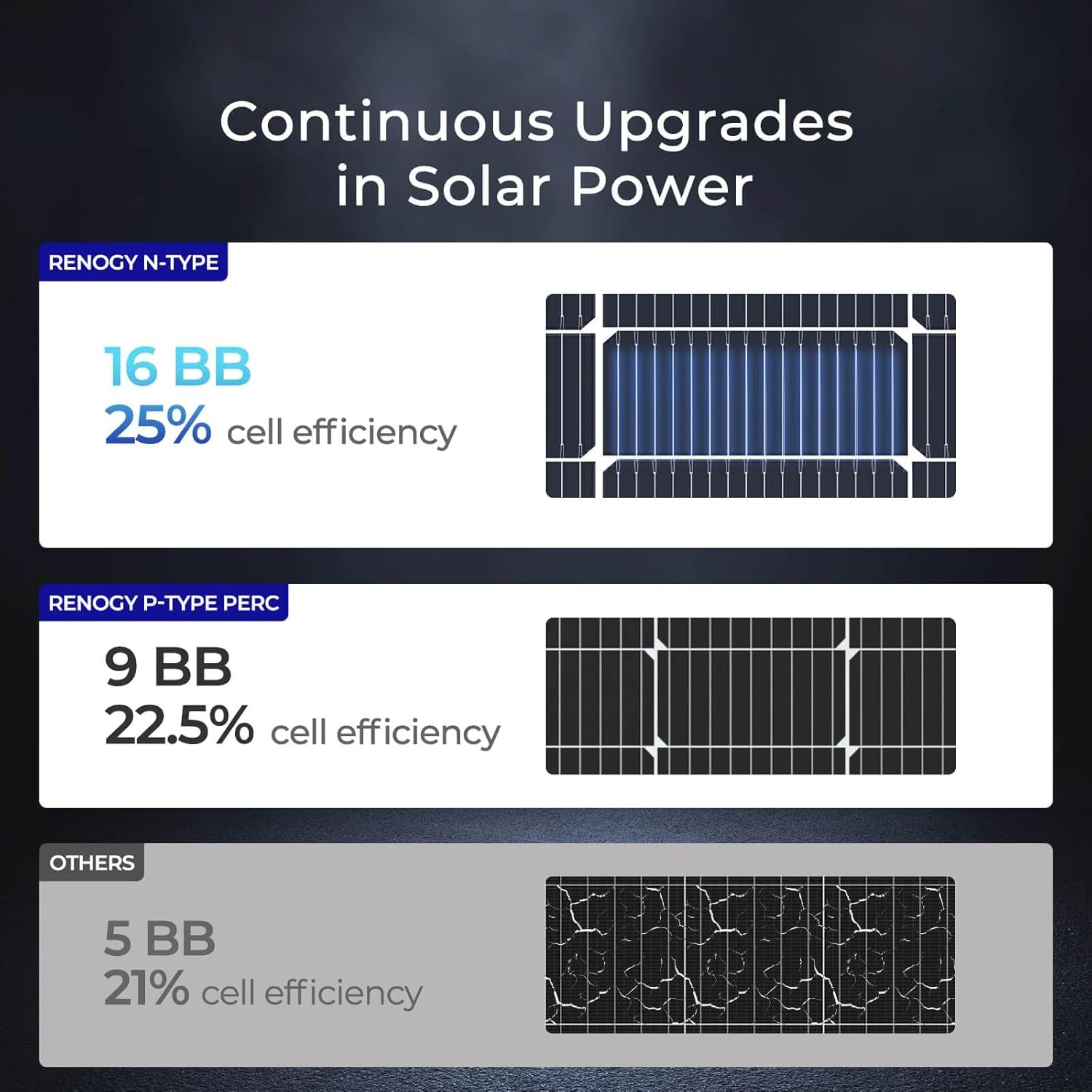

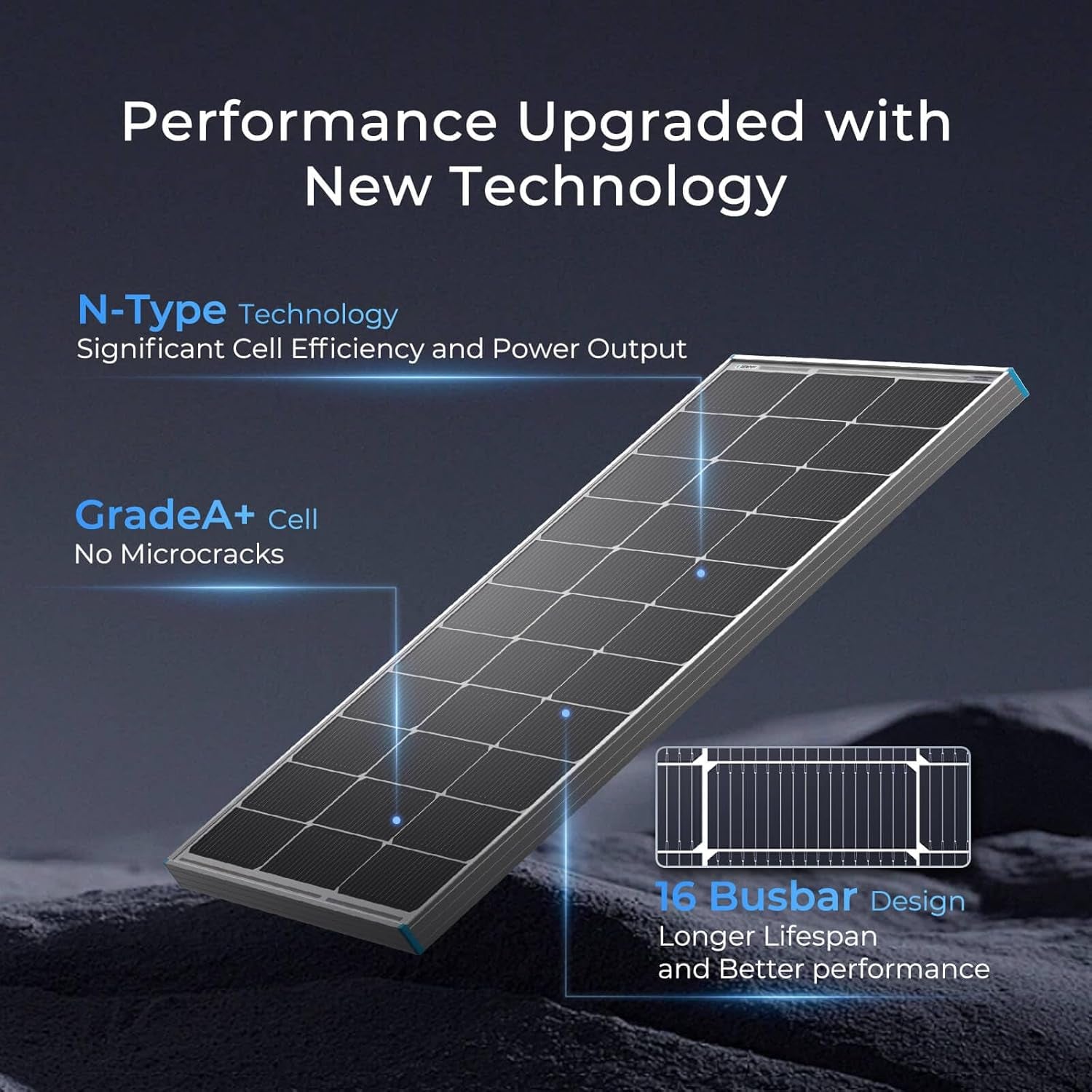

- 16BB for Higher Conversion Efficiency and Longer Lifespan - Utilizing advanced 16BB cell technology, this n-type solar panel enhances photoelectric conversion efficiency while mitigating hot spots and hidden cracks, ensuring a longer service life and superior module performance.

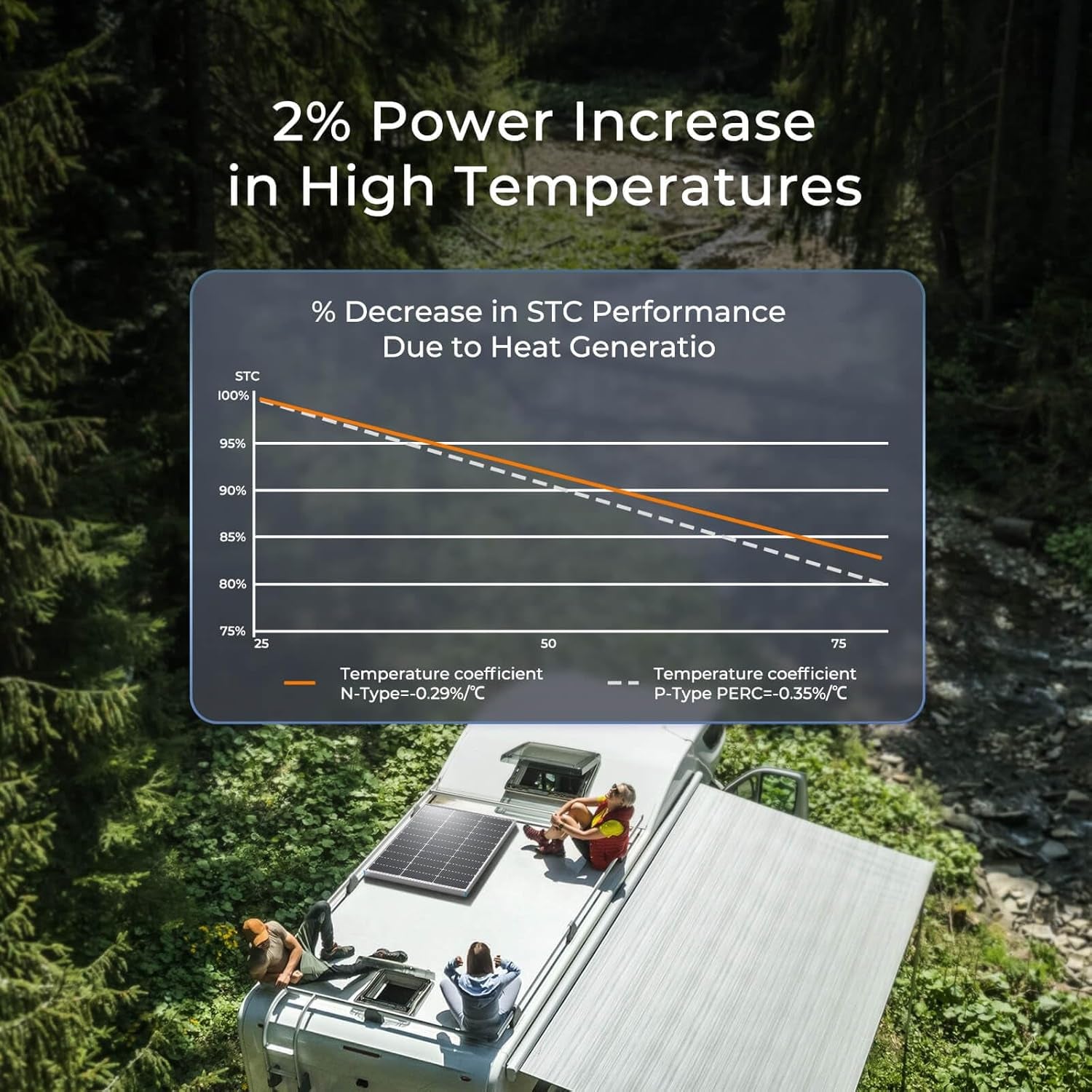

- Enhanced Performance in High Temperatures - Renogy 100 watt solar panel features a low temperature coefficient, minimizing power loss in high-temperature conditions for superior product performance. The 12v solar panel allows for increased power generation, particularly beneficial in summer months or extremely hot areas.
- Built to Last - Equipped with IP65 protection, this 100w solar panel is designed to endure snow, rain, and heat for decades. With low-iron tempered glass and corrosion-resistant aluminum frames, it ensures exceptional performance in all weather conditions.
- Long-Term Reliability - Renogy solar panels with low degradation (≤1% in the first year, ≤0.4% annually). It’s backed by a 10-year material and workmanship commitment, plus a 25-year performance guarantee at 80% output.
Product description

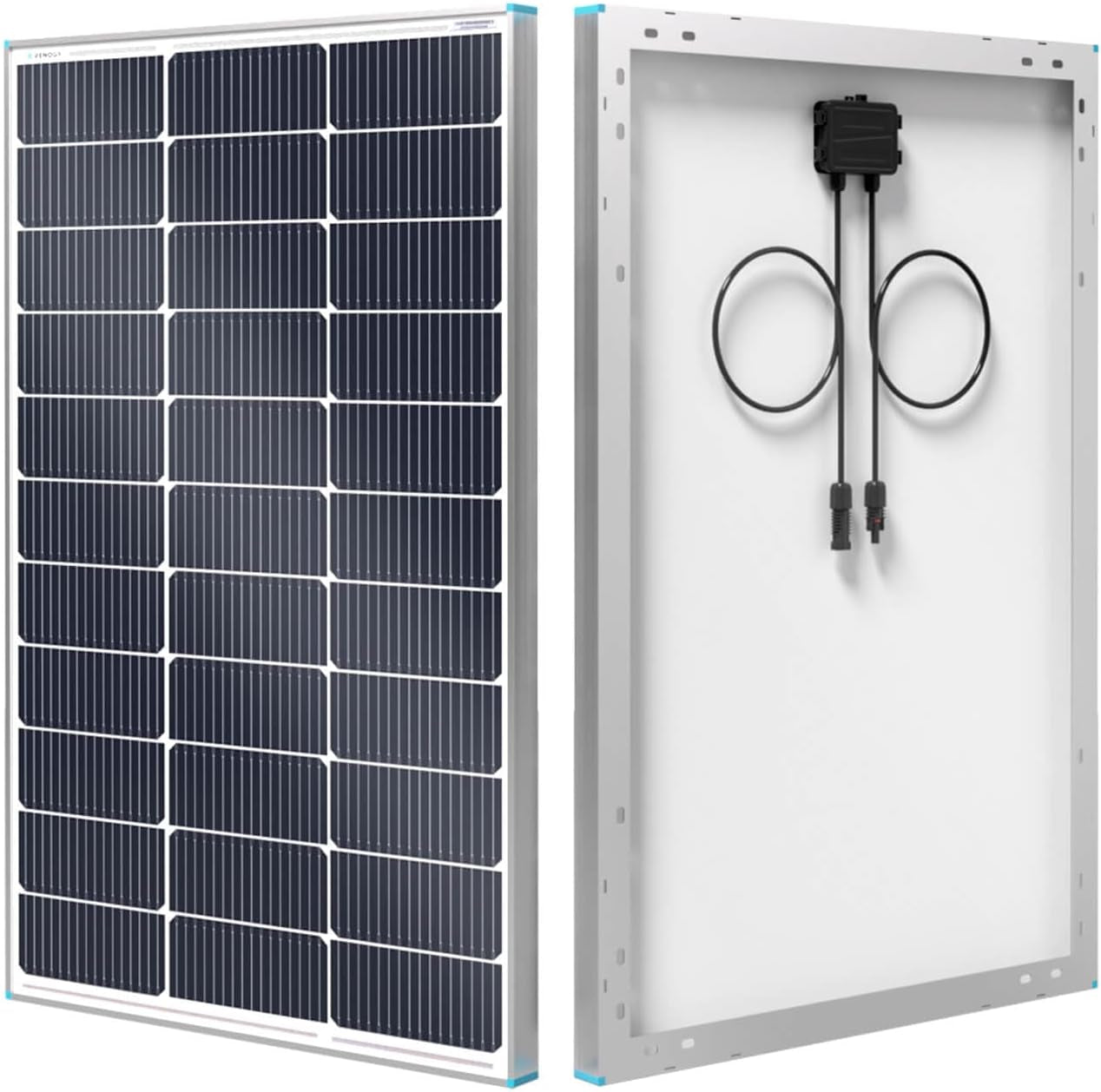

Renogy 100W Solar Panel Ntype
Merchant VideoSpecifications
| Max Power at STC | 100W-2 Pack |
| Open Circuit Voltage | 22.79V |
| Short Circuit Current | 5.31A |
| Optimum Operating Voltage | 19.97V |
| Optimum Operating Current | 5.01A |
| Cell Efficiency | 25% |

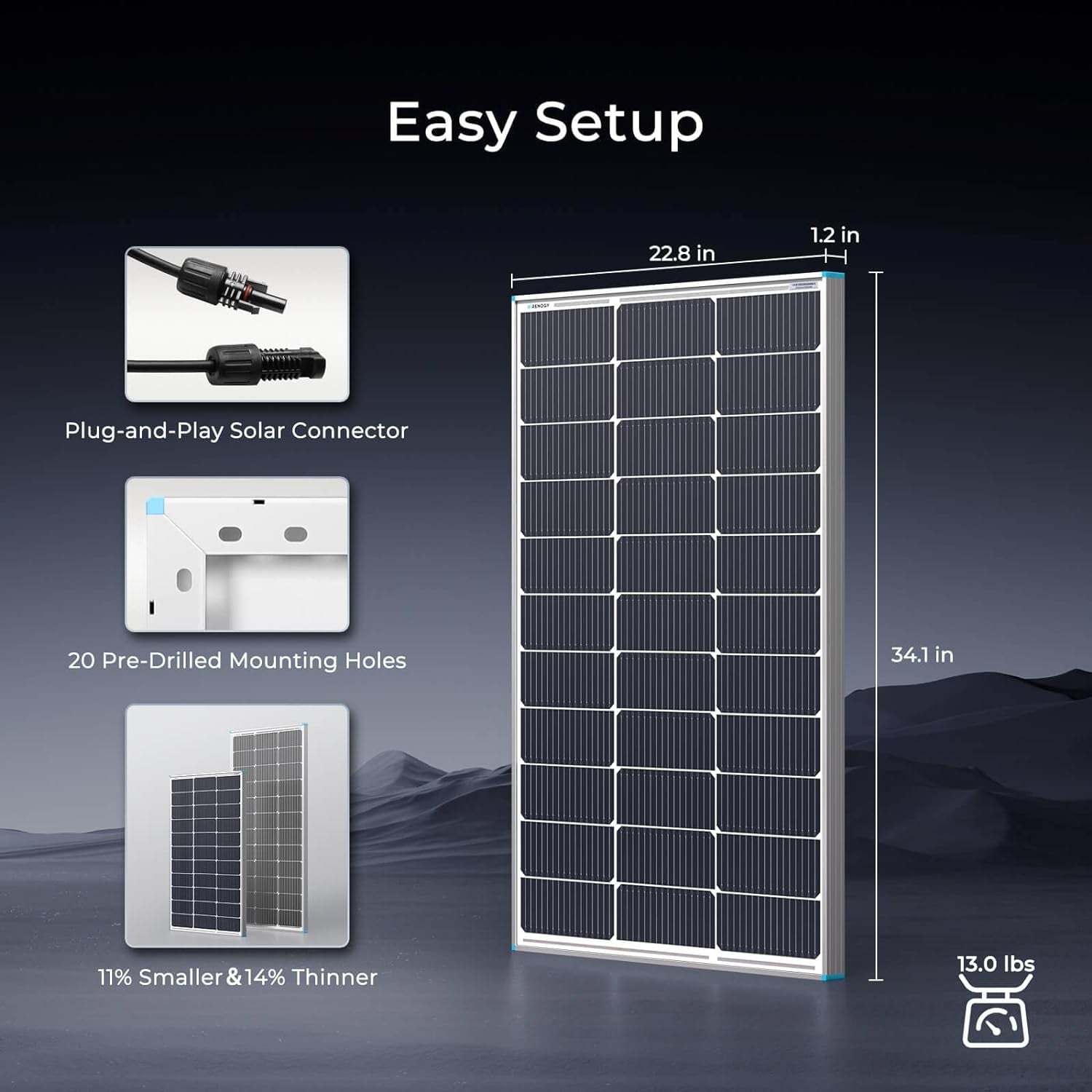

| Dimensions | 34.1x22.8x1.2in/865x578x30mm |
| Weight | 13.0lbs/5.9kg |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Module Efficiency | 20.0% |
| Operating Temperature | -40°F~194°F / -40℃~90℃ |
-
What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use.
-
Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
-
How should I connect solar panels in my electrical circuit (series vs parallel)
Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect.
-
How many solar panels do I need ?
To determine solar panel needs, calculate the power load (Watts) and capacity (Watt-hours). Size the battery bank based on minimum capacity, then adjust panel quantity or power input accordingly.
-
What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？
When you open the product page, you will see a title like "xxx Watt 12 Volt Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.
Find the Right Solar Panel for You
| Customer Reviews | 4.6 out of 5 stars 128 | 4.6 out of 5 stars 168 | 4.3 out of 5 stars 237 | 4.7 out of 5 stars 659 | 4.5 out of 5 stars 165 | 4.4 out of 5 stars 3,104 | 4.4 out of 5 stars 3,104 |
| Price | $89.99$89.99 | $179.99$179.99 | $239.99$239.99 | $54.99$54.99 | $307.99$307.99 | $65.99$65.99 | $32.99$32.99 |
| Options by Series | 100W/175W/100Wx2 | 200W/200Wx2 | 120W/200Wx2/200Wx4 | 50W | 50W/100W/200W | Mount for 50W/100W/120W Panel | Mount for 50W/100W/120W Panel |
| Cell Type | N-Type Cell | N-Type Cell | N-Type Cell | Perc Cell | Perc Cell | / | / |
| Cell Efficiency | 25% | 25% | 25% | 22.5% | 22.5% | / | / |
| Busbar | 16 Busbar | 16 Busbar | 16 Busbar | 9 Busbar | 9 Busbar | / | / |
| Anti-shading Tech | Bypass Diodes | Bypass Diodes | Cell-level Shadow Management | Bypass Diodes | Bypass Diodes | / | / |
| Protection Rating | IP67 | IP67 | IP67 | IP67 | IP67 | / | / |
| Commitment | 10 Years | 10 Years | 5 Years | 10 Years | 5 Years | 1 Year | 1 Year |
| Corner Protection | ✔ | ✔ | ✔ | ✔ | ✔ | ✘ | ✘ |
| Aluminum Alloy Frame | ✔ | ✔ | ✔ | ✔ | ✔ | ✘ | ✘ |
Share

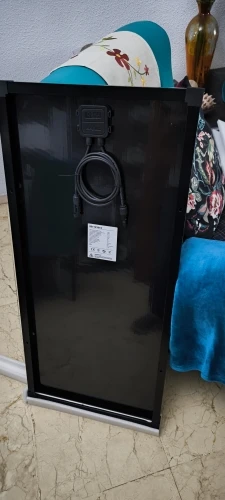

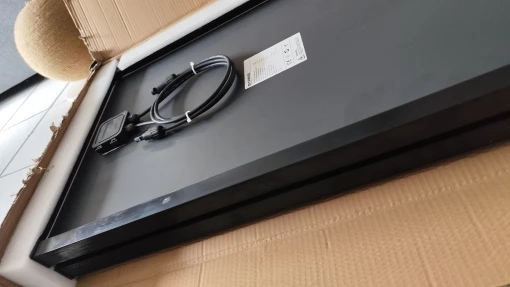

The panel looks magnificent, with high-quality construction. I really like that the connection box is at the back. It has a fairly light weight. Without having tried it, the impression is very good, I will probably buy more.
The deal with the seller = Excellent.
Some delay in delivery due to customs inspection.

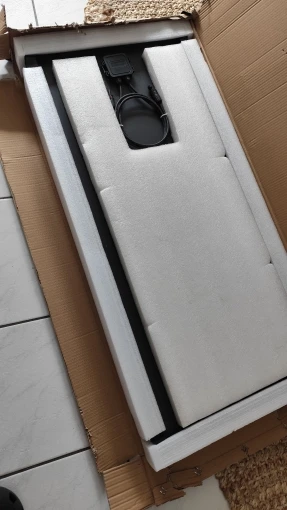

Super fast shipping - from today to tomorrow. Panel itself is relatively well packed. Unfortunately distribution bot has no sealings, but id assume thos is easily fixable.
I was able to get 68w from 100w panel, not bad at all.
For around 22 eurr inkl shipping this was great order.

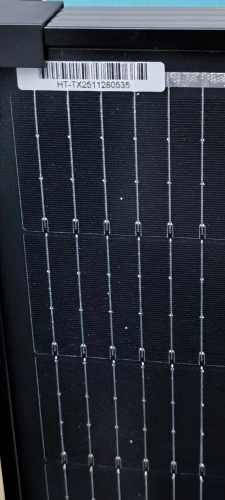

The panel had minor processing defects on the solder tracks/busbars, but with low shading, the performance is actually only slightly affected. For glass modules, the power rating is usually accurate, but here it's a bit off: I measured about 70-75W in full sunlight in Germany. That's okay, but not great.
Good quality for the price. Performance almost as good as more expensive 100W panels.
Obacht should be applied during tension. The measured idle voltage was measured with
25.6V measured at around 10 degrees Celsius.

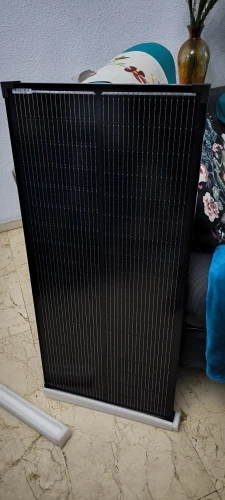

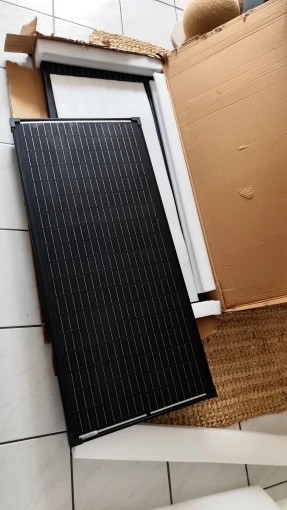

The panels arrived in good condition, there were 2 pieces in each box, well packaged. I had a performance in Germany today in mid-March with cloudy skies, with a performance time of approximately... 15 watts measured per panel. Germany is not the optimal country for photovoltaics. In direct sunlight, they definitely deliver more. More expensive panels wouldn't deliver 100W under the same weather conditions, so the price/performance ratio is OK, but could be better. It doesn't always have to be in an expensive panel. I hope these things last at least 8 years.
